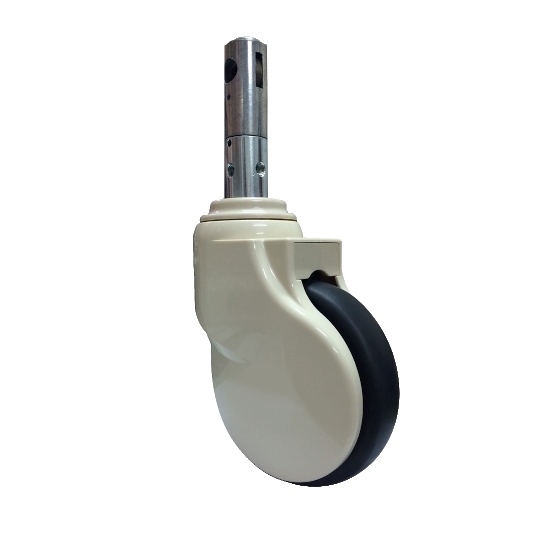

M06— MEDICALBED CASTERS
※ WHEEL MATERIAL
– PP – POLYPROPYLENE
※ TREAD MATERIAL
– TPR
– PPU
※ HOUSING MATERIAL
– ABS
※ BRAKE OPTIONS
– TL – TOTAL LOCK
– CL – CENTRALCONTROL LOCK
※ STEM OPTIONS
– GR – GRIP RING
– TS – THREADED STEM
– BH – BOLT HOLE
– RS – ROUND STEM
– P – PLATE
– CS – CENTRAL STEM
※ FINISH OPTIONS
– ZINC PLATE
– CHROME
– NICKEL
| Diameter (mm) | Tread Width (mm) | Load (kgs) | Load Height (mm) | Material | SWIVEL No. | BRAKE No. | BEARING TYPE |
| 100 | 32 | 90 | 145 | TPR | M06S100-TPRB | M06TL100-TPRB | BEARING |
| 125 | 32 | 100 | 165 | TPR | M06S125-TPRB | M06TL125-TPRB | BEARING |
| 150 | 32 | 120 | 195 | TPR | M06S150-TPRB | M06TL150-TPRB | BEARING |
| 200 | 32 | 120 | 240 | TPR | M06S200-TPRB | M06TL200-TPRB | BEARING |
| Diameter (inch) | Tread Width (inch) | Load (lbs) | Load Height (inch) | Material | SWIVEL No. | BRAKE No. | BEARING TYPE |
| 4 | 1-1/4 | 190 | 5-11/16 | TPR | M06S4-14-TPRB | M06TL4-14-TPRB | BEARING |
| 5 | 1-1/4 | 220 | 5-1/4 | TPR | M06S5-14-TPRB | M06TL5-14-TPRB | BEARING |
| 6 | 1-1/4 | 265 | 6-1/8 | TPR | M06S6-14-TPRB | M06TL6-14-TPRB | BEARING |
| 8 | 1-1/4 | 265 | 9-7/16 | TPR | M06S8-14-TPRB | M06TL8-14-TPRB | BEARING |
