I32— LIGHT
DUTY CASTERS
※
WHEEL MATERIAL
l
PP – POLYPROPYLENE
l
SR – SOFT RUBBER
l
HR – HARD RUBBER
※
HOUSING MATERIAL
l
STEEL
※
BRAKE OPTIONS
–
SL – SINGLE LOCK
–
BL – SIDE LOCK (Butterfly Brake)
※
BEARING OPTIONS
–
S – STEEL SLEEVE
※
STEM OPTIONS
–
TS – THREADED STEM
–
P – PLATE
※
FINISH OPTIONS
–
ZINC PLATE
–
CHROME
–
NICKEL
※
TOP PLATE
|
Diameter
(inch)
|

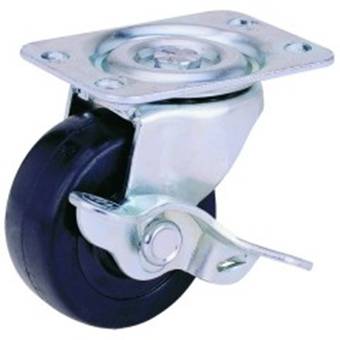

SWIVEL
|

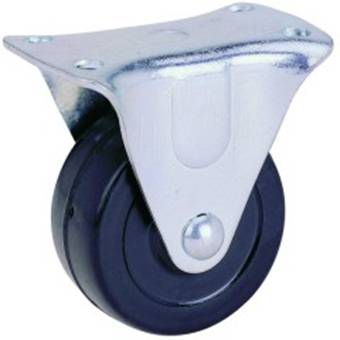

FIXED
|
|
2
|
1-7/8
X 2-9/16
|
15/16
X 2-1/8
|
1-1/2
X 2-21/32
|
15/16
X 2-1/8
|
|
2-1/2
|
2-3/4
X 3-7/8
|
1-3/4 X 3
|
2-1/4
X 4-7/16
|
1-1/16
X 3-1/2
|
|
3
|
3-1/8
X 4-1/8
|
2-3/8
X 3-3/8
|
2-1/4
X 5-1/8
|
1-3/16 X 4
|
|
4
|
4
X 5
|
3
X 4
|
3-1/4
X 6-1/4
|
1-3/4
X 5
|
|
Diameter
(inch)
|
Tread Width
(inch)
|
Load
(lbs)
|
Load Height
(inch)
|
Material
|
SWIVEL No.
|
FIXED No.
|
BEARING TYPE
|
|
2
|
15/16
|
90
|
2-7/16
|
PP
|
I32S2-1516-PP
|
I32F2-1516-PP
|
PLAIN
|
|
90
|
SOFT RUBBER
|
I32S2-1516-SR
|
I32F2-1516-PP
|
|
125
|
HARD RUBBER
|
I32S2-1516-HR
|
I32F2-1516-SR
|
|
2-1/2
|
1-1/16
|
175
|
3-1/4
|
PP
|
I32S212-116-PP
|
I32F212-116-PP
|
PLAIN
|
|
100
|
SOFT RUBBER
|
I32S212-116-SR
|
I32F212-116-PP
|
|
175
|
HARD RUBBER
|
I32S212-116-HR
|
I32F212-116-SR
|
|
3
|
1-1/4
|
275
|
3-5/8
|
PP
|
I32S3-14-PP
|
I32F3-14-PP
|
PLAIN
|
|
150
|
SOFT RUBBER
|
I32S3-14-SR
|
I32F3-14-PP
|
STEEL SLEEVE
|
|
275
|
HARD RUBBER
|
I32S3-14-HR
|
I32F3-14-SR
|
STEEL SLEEVE
|
|
4
|
1-1/4
|
200
|
5
|
SOFT RUBBER
|
I32S4-14-PP
|
I32F4-14-PP
|
STEEL SLEEVE
|
|
300
|
HARD RUBBER
|
I32S4-14-SR
|
I32F4-14-PP
|
STEEL SLEEVE
|
