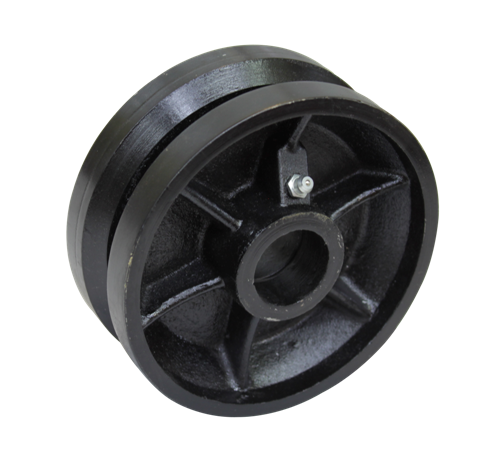

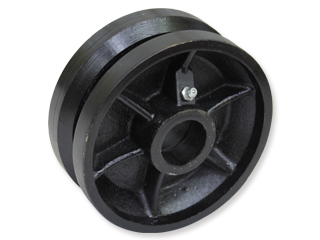

W09— V GROOVE
CAST IRON WHEELS
※
PRECISELY MACHINED 90∘V GROOVE WITH RELIEF GROOVE
※
HIGH CAPACITY
※
EXCEPTIONALLY STRONG CAST IRON
※
FOR USE ON IVERTED STEEL ANGLE TRACK
Diameter
(inch)
|
Tread Width
(inch)
|
Hub Length
(inch)
|
Bore Diameter
(inch)
|
Bearing Diameter
(inch)
|
Load
(lbs)
|
Outer Groove Width
(inch)
|
Inner Groove Width
(inch)
|
WHEEL No.
|
BEARING TYPE
|
|
3
|
1-1/4
|
1-5/8
|
1/2
|
3/8
|
600
|
7/8
|
7/16
|
W093-14-VGS
|
STEEL SLEEVE
|
|
1-1/2
|
1-5/8
|
1-3/16
|
5/8 & 3/4
|
600
|
7/8
|
7/16
|
W093-12-VGR
|
ROLLER BEARING
|
|
4
|
1-1/2
|
1-5/8
|
1-3/16
|
5/8 & 3/4
|
800
|
7/8
|
7/16
|
W094-12-VGR
|
ROLLER BEARING
|
|
2
|
2-3/16
|
1-3/16
|
5/8 & 3/4
|
1000
|
7/8
|
7/16
|
W094-2-VGR
|
|
5
|
2
|
2-3/16
|
1-3/16
|
5/8 & 3/4
|
1100
|
7/8
|
7/16
|
W095-2-VGR
|
ROLLER BEARING
|
|
6
|
2
|
2-3/16
|
1-3/16
|
5/8 & 3/4
|
1200
|
7/8
|
7/16
|
W096-2-VGR
|
ROLLER
BEARING
|
|
2-1/2
|
2-3/4
|
1-15/16
|
1 & 1-1/4
|
2000
|
7/8
|
7/16
|
W096-212-234VGR
|
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
2000
|
7/8
|
7/16
|
W096-212-314VGR
|
|
3
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
2500
|
7/8
|
7/16
|
W096-3-VG78R
|
|
1-3/8
|
11/16
|
W096-3-VG38R
|
|
8
|
2
|
2-3/16
|
1-3/16
|
5/8 & 3/4
|
1400
|
7/8
|
7/16
|
W098-2-VGR
|
ROLLER
BEARING
|
|
2-1/2
|
2-3/4
|
1-15/16
|
1 & 1-1/4
|
2500
|
7/8
|
7/16
|
W098-212-234VGR
|
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
2500
|
7/8
|
7/16
|
W098-212-314VGR
|
|
3
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
2800
|
7/8
|
7/16
|
W098-3-VG78R
|
|
1-3/8
|
11/16
|
W098-3-VG38R
|
|
10
|
3
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
3000
|
7/8
|
7/16
|
W0910-3-VG78R
|
ROLLER
BEARING
|
|
1-3/8
|
11/16
|
W0910-3-VG38R
|
