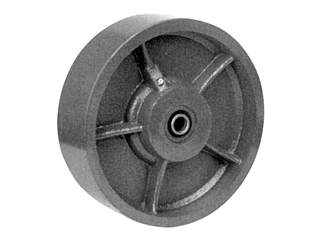

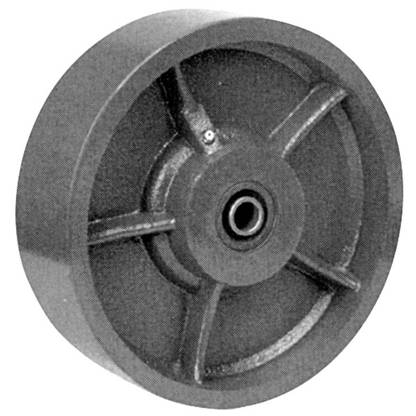

W11— DUCTILE
CAST IRON WHEELS
※
LARGE HUB DIAMETER ACCOMMODATES SPECIAL BALL
BEARING REQUIRMENTS
※
EXCEPTIONAL SHOCK LOAD CAPACITY
※
EXTREMELY HEAVY CORE AND WHEEL FACE
※
MACHINED WHEEL FACE
Diameter
(inch)
|
Tread Width
(inch)
|
Hub Length
(inch)
|
Bore Diameter
(inch)
|
Bearing Diameter
(inch)
|
Load
(lbs)
|
WHEEL No.
|
BEARING TYPE
|
|
4
|
2
|
2-3/16
|
1-3/16
|
5/8 & 3/4
|
1500
|
W114-2-CIR
|
ROLLER BEARING
|
|
5
|
2
|
2-3/16
|
1-3/16
|
5/8 & 3/4
|
1500
|
W115-2-CIR
|
ROLLER BEARING
|
|
2-1/2
|
2-3/4
|
1-15/16
|
1 & 1-1/4
|
2000
|
W115-212-CIR
|
|
6
|
2
|
2-3/16
|
1-3/16
|
5/8 & 3/4
|
2000
|
W116-2-CIR
|
ROLLER BEARING
|
|
2-1/2
|
2-3/4
|
1-15/16
|
1 & 1-1/4
|
2500
|
W116-212-234CIR
|
ROLLER BEARING
|
|
―
|
3/4 & 1
|
1700
|
W116-212-234CIT
|
TAPERED BEARING
|
|
3
|
―
|
3/4 & 1
|
2500
|
W116-212-3CIT
|
TAPERED BEARING
|
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
2500
|
W116-212-314CIR
|
ROLLER BEARING
|
|
3
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
4000
|
W116-3-314CIR
|
ROLLER BEARING
|
|
―
|
3/4 & 1
|
2000
|
W116-3-314CIT
|
TAPERED BEARING
|
|
8
|
2
|
2-3/16
|
1-3/16
|
5/8 & 3/4
|
2000
|
W118-2CIR
|
ROLLER BEARING
|
|
2-1/2
|
2-3/4
|
1-15/16
|
1 & 1-1/4
|
3000
|
W118-212-234CIR
|
ROLLER BEARING
|
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
3000
|
W118-212-314CIR
|
ROLLER BEARING
|
|
―
|
3/4 & 1
|
1800
|
W118-212-314CIT
|
TAPERED BEARING
|
|
3
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
5000
|
W118-3-314CIR
|
ROLLER BEARING
|
|
―
|
3/4 & 1
|
2000
|
W118-3-314CIT
|
TAPERED BEARING
|
|
10
|
2-1/2
|
2-3/4
|
1-15/16
|
1 & 1-1/4
|
4500
|
W1110-212-234CIR
|
ROLLER BEARING
|
|
―
|
3/4 & 1
|
2400
|
W1110-212-234CIT
|
TAPERED BEARING
|
|
3
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
8000
|
W1110-3-314CIR
|
ROLLER BEARING
|
|
―
|
3/4 & 1
|
3000
|
W1110-3-314CIT
|
TAPERED BEARING
|
|
12
|
3
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
5000
|
W1112-3-314CIR
|
ROLLER BEARING
|
|
―
|
3/4 & 1
|
3400
|
W1112-3-314CIT
|
TAPERED BEARING
|
|
14
|
3
|
3-1/4
|
1-15/16
|
1 & 1-1/4
|
6000
|
W1114-3-CIR
|
ROLLER BEARING
|
